A car radiator is essentially the heartbeat of your vehicle's cooling system. But have you ever wondered how this crucial component is made? This article takes you through a straightforward, step-by-step guide to the entire radiator manufacturing process. From the initial raw materials to the final packaging, we’ll show you how precision and rigorous testing come together to create a dependable product for your car.
1. Material Preparation: Cutting and Bending
The journey begins with large rolls or sheets of metal, usually aluminum. First up, a shearing machine slices these sheets into smaller, more manageable pieces, a process known as blanking. After that, a press brake machine steps in to carefully bend these metal pieces, shaping the fundamental components of the radiator—the side tanks and support frames. Getting this part right is essential for ensuring everything fits together perfectly later on.
2. Gas chamber, laser cutting, main sheet cutting, and bending.
Once the metal sheet is initially cut, it moves on to the precision forming stage. This is where we focus on crafting the key structural elements of the radiator—the air chamber (often referred to as the water chamber) and the main plate.
We use laser cutting to shape the gas chamber. A powerful laser beam meticulously carves out the intricate planar expansion design of the gas chamber based on a digital blueprint, including the outlines for the holes that will eventually connect the water pipes and other accessories. This technique is not only efficient but also ensures that the cutting edges are smooth and precise.
We cut out the main piece that will be used to assemble the core. Using precise cutting dies, metal strips are punched into components of specific lengths and widths. The accuracy of these main pieces is crucial, as it directly impacts how well everything aligns during the core assembly.
We move on to the bending process. With the help of a CNC bending machine, the cut and trimmed flat metal parts are expertly bent into their final three-dimensional shapes. The air chamber plates are formed into a box-like structure, while the edges of the main plates are folded up to create a framework for securing the heat dissipation tubes and belts. This step is vital as it provides the necessary structural strength and functionality for assembly, setting the stage for the next phase of the process.
3. Building the Heart: Core Assembly
The radiator core is where the magic of heat exchange occurs. Skilled workers or automated machines put it together using numerous thin cooling tubes and corrugated fins. The tubes are arranged in neat rows, with the fins layered in between, maximizing the surface area. This assembly is then lightly bonded to keep everything in place before moving on to the next step of permanent joining.

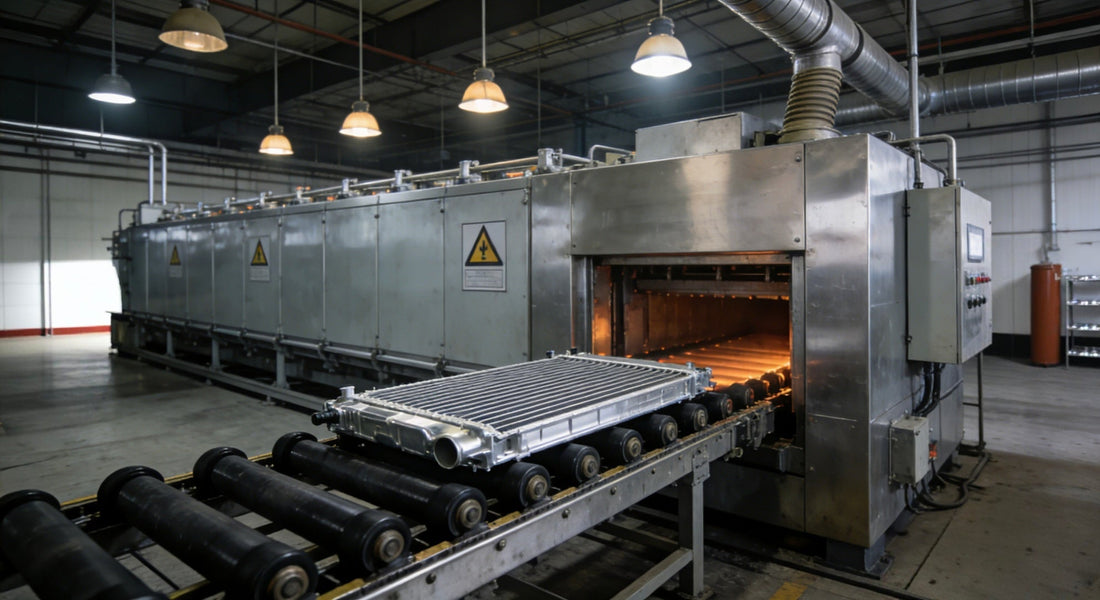

4. Permanent Bonding: The Brazing Furnace
Once the core and other aluminum components are assembled, they enter a crucial phase: the brazing furnace. This is a sizable oven with a controlled atmosphere. The temperature is gradually increased, causing a special brazing cladding on the metal to melt. This molten material seeps into the joints between the tubes, fins, and headers. As it cools, it forms a single, solid, leak-proof core unit. The bond created in this furnace is remarkably strong and excellent at conducting heat.
5. First Quality Check: Core Pressure Test
After the brazing process, it’s time for the core to undergo its first test. Technicians seal the ends and fill the core with air or nitrogen under pressure. Then, they either submerge it in water or monitor it with sensors. If any bubbles escape, it indicates a leak. This test is crucial to confirm that the brazing was successful and that the core is properly sealed before moving on to the next assembly steps.
6. Attaching the Tanks: Argon Arc Welding
Next up, the side tanks, which hold the coolant, are attached to the core. Skilled welders employ a technique known as argon arc welding (or TIG welding). An electric arc melts the metal, while an inert argon gas protects the weld from the air. This results in a clean, strong, and precise weld around the joint where the tank meets the header, ensuring the final seals are top-notch.
7. The Ultimate Test: Final Assembly Pressure Test
Now, the fully assembled radiator faces its most critical evaluation: the final pressure test. It’s connected to a test rig that pumps fluid into it at pressures exceeding those of a typical car cooling system. The radiator is held under this pressure for a specified duration. Technicians keep a close eye on the gauges, looking for any drops in pressure or signs of leaks. Only a radiator that successfully passes this test will move on to the next stage.
8. Finishing Touches: Shaping and Cleaning
Sometimes, while handling, the radiator can get a little bent out of shape. To fix this, it goes through a straightening process to make sure it’s perfectly flat and meets its intended dimensions. Once it’s shaped up, it moves on to the cleaning and rinsing station. Here, any leftover flux, oil, or dust from the manufacturing process is washed away. After that, the radiator is dried, resulting in a clean and polished finish.
9. Ready for Dispatch: Final Inspection and Packaging
A worker conducts a final visual inspection of the clean radiator, looking for any cosmetic imperfections. Once it passes this check, it’s time for packaging. Protective caps are placed on the inlet and outlet ports, and the radiator is carefully wrapped and placed in a sturdy cardboard box, often with extra padding. This ensures it stays safe during storage and shipping to distributors, workshops, or customers.
