Creating a top-notch motorcycle radiator is all about following a series of precise steps—from laser cutting essential parts to the final packaging. This guide walks you through each important phase, including laser cutting the air chamber, processing the main fins, bending, stamping, core assembly, brazing, pressure testing, welding, and finishing. By the end, you'll have a clear understanding of how these durable and efficient radiators are made.
1. Laser Cutting the Air Chamber Shapes

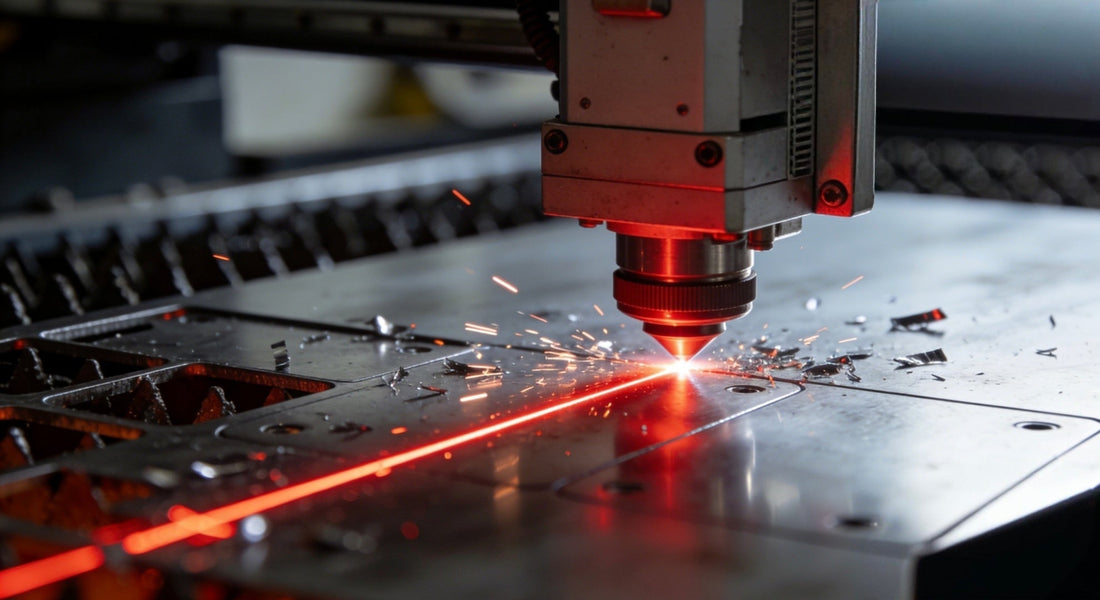

The journey of crafting a motorcycle radiator begins with laser cutting the air chamber shapes. We utilize high-precision laser cutting machines to carve out the metal sheets that will form the radiator’s air chambers. This method guarantees that the shapes are both accurate and consistent, which is crucial for optimal air circulation and heat dissipation. Plus, laser cutting helps reduce material waste and boosts the overall precision of the final product, setting a strong foundation for the next steps in manufacturing.
2. Cutting the Main Radiator Fins
Next up is the cutting of the main fins for the motorcycle radiator. Our skilled workers use specialized cutting tools to shape the metal fins to the exact size and form needed. These main fins are vital for effective heat transfer, so getting the cutting just right is essential. We stick to strict size standards to ensure that the fins fit perfectly with other components during the assembly process.
3. Bending Process for Radiator Components
Once the cutting is done, the relevant parts—including the main fins and air chamber components—move on to the bending stage. Experienced technicians operate bending machines to shape the metal pieces into the required angles and curves. This step is key because the bent components dictate the overall structure and fit of the radiator. Each bend is carefully calibrated to meet design specifications, ensuring that everything can be assembled smoothly later on.
4. Stamping Operation for Precision Details
After the bending process, we move on to stamping, which is all about crafting those precise holes, grooves, and other essential details on the radiator components. A stamping press exerts just the right amount of force to shape the metal parts, making it easier to install fittings, hoses, and various accessories. This step is crucial for ensuring that every functional detail is spot on, setting the stage for the radiator to work properly.
5. Core Assembly of the Motorcycle Radiator
With all the individual components ready, we dive into the core assembly. Here, our skilled workers carefully fit together the main fins, air chambers, and other parts to create the radiator's core structure. This part of the process demands a keen eye for detail to make sure everything lines up perfectly. Getting the assembly right at this stage is vital for the radiator’s heat dissipation efficiency and overall durability.
6. Brazing Furnace Operation for Component Bonding
Once the core assembly is complete, we place the radiator core into a brazing furnace. The furnace heats the core to a precise temperature, melting the brazing material to bond the components together permanently. This brazing process forms a robust, leak-proof connection between the parts, which is essential for the radiator to hold coolant effectively. We keep a close watch on the furnace temperature and timing to achieve the best bonding results.
7. Core Pressure Testing for Leak Detection
After the brazed core has cooled down, it’s time for core pressure testing. We fill the core with a test fluid and apply controlled pressure to check for any leaks. If we find any leaks during this stage, we fix them right away to maintain the core’s integrity. This step is crucial to prevent coolant leaks in the final product, which could jeopardize the radiator’s performance and lifespan.
8. Argon Arc Welding for Radiator Assembly
After we finish core testing, we turn to argon arc welding to attach extra components like the inlet and outlet pipes to the radiator core. This method gives us a clean, robust weld that minimizes any damage to the surrounding metal. Thanks to this welding process, we can ensure that all connections are secure and leak-proof, which boosts the radiator’s reliability.
9. Final Assembly Pressure Testing
Once the welding is done, the whole radiator assembly goes through a final pressure test. This test is more thorough than the core test, as it checks the entire unit for leaks and structural integrity. We apply industry-standard pressure levels to mimic real-world operating conditions, making sure the radiator can handle the demands of motorcycle use.
10. Radiator Shaping and Trimming
After passing the final pressure test, the radiator is shaped and trimmed. Our skilled workers use specialized tools to adjust the radiator’s shape, ensuring it fits the standard dimensions of most motorcycle models. Any excess material or uneven edges are trimmed away to enhance the radiator’s appearance and fit.
11. Polishing and Cleaning
Next up is polishing and cleaning the radiator. We polish the outer surface to eliminate scratches and achieve a smooth, professional finish. Then, we give the radiator a thorough cleaning to remove any debris, oil, or residue left over from the manufacturing process. A clean, polished radiator not only looks great but also helps prevent contamination of the coolant.
12. Final Packaging
The final step in our manufacturing process is packaging. We carefully wrap the radiator in protective material and place it in a sturdy box to avoid any damage during shipping. The packaging also includes labels with product information, ensuring that it reaches our customers safely.
The process of making a motorcycle radiator is quite intricate and involves several steps, each demanding a keen eye for detail. Starting with laser cutting the shapes for the air chambers and moving all the way to the final packaging, every phase is vital in crafting a radiator that’s not only high-quality but also built to last, ensuring effective heat dissipation. By adhering to these rigorous manufacturing standards, we guarantee that our motorcycle radiators cater to the needs of riders and can withstand the challenges of the road.
