How to Spot a Quality Car Radiator? Learn Its Manufacturing Process
How to Spot a Quality Car Radiator? Learn Its Manufacturing Process
Car radiators play a crucial role in keeping your vehicle’s engine cool. In this blog, we’ll take you through the entire process of creating a car radiator, from assembling the fins and core to brazing and conducting water pressure tests. Each step is designed to ensure that the radiator functions effectively and has a long lifespan for your car.
1. Assemble Radiator Cooling Fins
The first step in making a radiator is putting together the cooling fins. Workers take thin, heat-resistant metal sheets—usually aluminum—and shape them into small, wavy fins. These fins enhance heat dissipation because their wavy design increases the surface area. Each fin is carefully positioned to fit snugly, preventing any loose parts and ensuring efficient heat transfer later on. We use standard tools to secure the fins in place, making sure they align perfectly for the next stage.
2. Build the Radiator Core
Once the fins are assembled, we move on to constructing the radiator core, which is the heart of the radiator. The core is made up of the cooling fins and tubes. Workers insert the pre-assembled fins into rows of thin metal tubes that carry coolant to absorb engine heat. We align the tubes and fins with precision and then fasten them lightly. This loose assembly allows the parts to fit together more effectively during the brazing process. The structure of the core directly impacts the radiator’s cooling efficiency, so every component must be positioned correctly.
3. Brazing Furnace Operation
Brazing plays a vital role in securely bonding the parts of the radiator core. To start, the loose core is placed inside a brazing furnace, which heats up to a high temperature—around 600°C—without reaching the melting point of the core’s metal. At this temperature, a special brazing material melts and seeps into the spaces between the fins and tubes. Once the furnace cools down, the brazing material solidifies, forming strong, leak-proof joints. We keep a close eye on the furnace temperature to ensure we don’t damage the core or compromise the bonds.
4. Core Water Pressure Testing

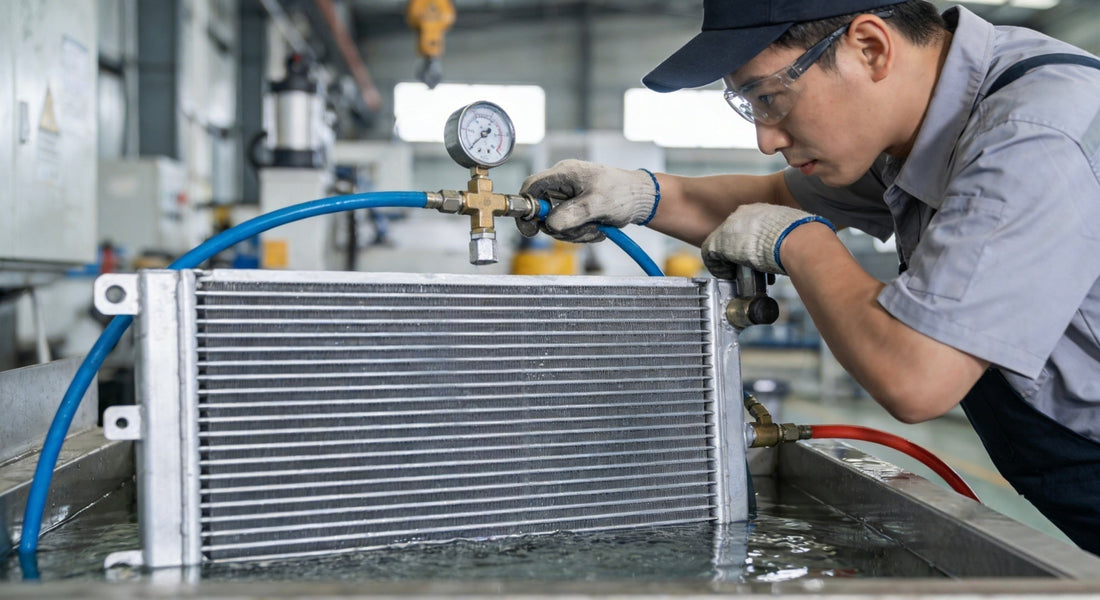

After the brazing process, the core undergoes water pressure testing to check for leaks. Workers connect the core to a pressure pump and fill it with water, then ramp up the pressure to a level higher than what it would normally experience during operation, holding it there for a few minutes. Inspectors look for any signs of water leaks—just a tiny drip means the core has failed. If there are leaks, the cores are either repaired or thrown out. This test is crucial to ensure that the radiator won’t leak coolant while in use, which helps protect the car’s engine from overheating.
5. Final Assembly and Quality Check
Once the core successfully passes the pressure test, it’s time for final assembly. Workers attach end tanks (both top and bottom) to hold the coolant, along with inlets and outlets for proper coolant flow. They also add mounting brackets to ensure the radiator fits various car models. A thorough quality check follows, where all parts are inspected for any damage, connections are tightened, and it’s confirmed that the radiator meets the specifications for the car model. Only radiators that pass this rigorous check leave the factory.
Creating a car radiator is all about following specific steps—from assembling the fins and core to brazing and pressure testing. Each part of the process is designed to ensure strength, effective heat dissipation, and a leak-proof performance. Quality radiators are crucial for protecting your engine, so knowing how they’re made can really help you select the right auto part for your vehicle. Whether you’re looking for a replacement or an upgrade, understanding the manufacturing process for radiators will help you choose a dependable product.
