The Art of Radiator Manufacturing: Cutting, Bending, and Stamping

Have you ever thought about how a sturdy, dependable car radiator is made? It all kicks off with some pretty precise manufacturing steps. Cutting (or shearing), bending, and stamping are the essential processes that create radiator parts designed to fit just right and perform well. For drivers in Australia who rely on tough radiators, these steps are crucial—they ensure your radiator can handle our scorching heat and bumpy roads. Let's break down each step in a straightforward way.

Step 1: Cutting (Shearing) – Transforming Metal Sheets Into Radiator Blanks

We begin with large sheets of aluminum, which is the top choice for radiators. Our job is to slice these big sheets into smaller, specific shapes known as "blanks." These blanks will eventually become parts like the radiator core or tanks.

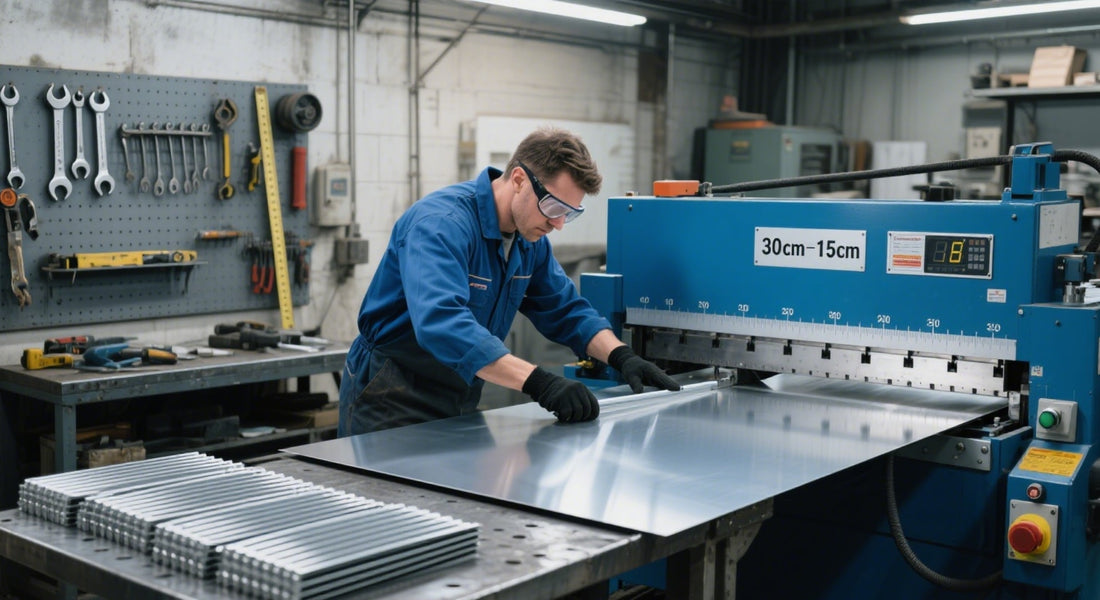

To do this, we use a shearing machine, which has sharp, powerful blades that slice through the aluminum sheets with precision. The operator sets the machine to the exact dimensions we need. For instance, if a radiator tank needs to measure 30cm long and 15cm wide, the shearing machine will cut the aluminum sheet to those precise measurements.
Why is this step so vital? If the cuts aren't spot on, the parts won't fit together properly later on. Our team carefully inspects each cut blank to ensure it aligns with the design. This attention to detail helps our radiators last longer—no loose parts or leaks from poorly fitting pieces.

Step 2: Bending – Molding Aluminum Into Radiator Parts

Once we've cut the blanks, it's time to shape the flat aluminum into three-dimensional parts. That's where bending comes into play. Most radiator components, like tanks or side panels, aren't flat—they need curves or angles to hold coolant and fit snugly in your car's engine bay.
We use a bending machine for this task. It features a "die" (a mold with the desired shape) and a "punch" that presses the aluminum blank into the die. For example, to create a radiator tank (the part that holds coolant), we bend the edges of the aluminum blank upward to form a box-like structure.

The operator is in charge of managing the machine's pressure and angle. If there's too much pressure, it can crack the aluminum; if there's too little, it won't shape properly. We make sure to test each bent part to confirm it fits the radiator's design. This step is crucial for Australian cars—our radiators need to fit snugly in engine bays to prevent damage from bumps on rural roads.

Step 3: Punching – Creating Holes & Openings for Tubes & Hoses

Radiators require holes and openings for two main reasons: to allow coolant to flow through the tubes and to connect to your car's hoses. Punching is the method we use to create these precise holes.

We utilize a punching machine, which features a sharp metal tool (known as the "punch") that drives through the aluminum part to form holes. The size and placement of these holes are dictated by the radiator's design. For instance, we punch small holes in the radiator core to secure the thin tubes that transport coolant, while larger holes are punched in the tanks to connect to your car's upper and lower hoses.

Precision is key here. If a hole is too small, the tube or hose won't fit; if it's too large, coolant will leak. Our machines are finely tuned to punch holes within 0.1mm of the specified design size. This level of accuracy ensures our radiators remain leak-free—even in the scorching 40°C Australian heat.

Why These Steps Are Important for Your Car Radiator

Cutting, bending, and punching may seem straightforward, but they are essential for the quality of a radiator. Precise cutting guarantees that parts fit together perfectly. Proper bending provides the necessary strength. Accurate punching prevents leaks. Together, these processes result in aluminum radiators that last 8–10 years (which is longer than plastic ones!) and can withstand Australia's challenging driving conditions.
At WORLEY, we take these steps seriously and never cut corners. Every radiator undergoes rigorous checks during cutting, bending, and punching. We want you to drive with peace of mind, knowing your radiator is built to last.

In need of a new radiator crafted with care? Reach out to us today!
